RUiXU RX-LFP48100-H | Self Heating 19" Rack Mounted 3U Module | UL 1973
SKU RX-LFP48100-H

RUiXU RX-LFP48100-H | Self Heating 19" Rack Mounted 3U Module | UL 1973

$1,299.00 - $1,299.00
$1,299.00
$1,299.00 - $1,299.00
$1,299.00
🚚
Only a few products left in stock
icon Get a Custom Solar System Design
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
📞 Call Us
💬 Live Chat

SPRING SALE – LOWEST PRICES GUARANTEED

Spring is here, and so are unbeatable deals. Don’t wait—shop now and secure the lowest prices before the sale ends!

  • Descriptions

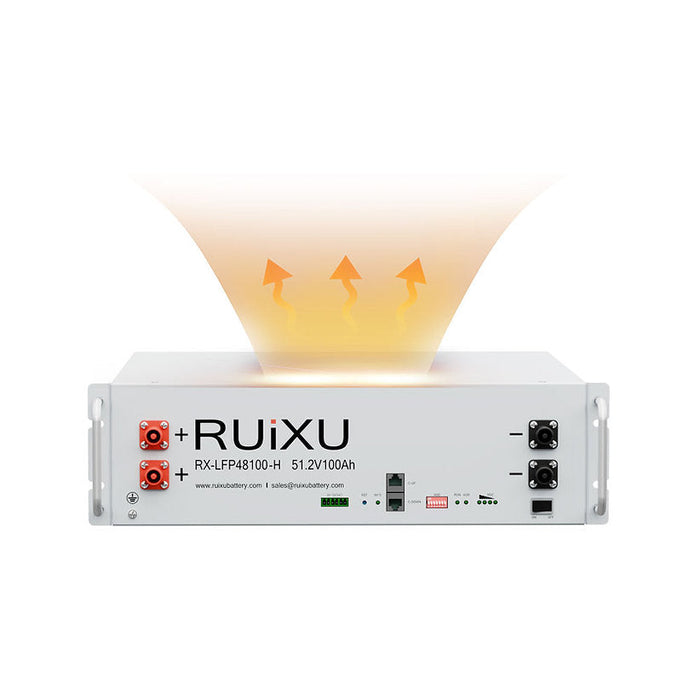

RUiXU RX-LFP48100-H Server Rack Battery

Introducing the RUIXU Self-heating RX-LFP48100-H, a 19" Rack Mounted 3U Module available at Direct Solar Power. With UL1973 certification, this module guarantees top-tier safety and reliability standards. Featuring advanced self-heating technology, it delivers superior performance even in adverse weather conditions. Effortlessly integrate this module into your solar energy system for optimal efficiency and dependable operation. Count on RUIXU for high-quality lithium battery solutions. Enhance your energy storage setup with the RUIXU Self-heating RX-LFP48100-H from Direct Solar Power.

What's Included with the RUiXU RX-LFP48100-H

  • (1) RUiXU 48V Server Rack battery (RX-LFP48100-H)
  • (1) RS485 Communication Cable
  • (1) Ground Cable
  • (1) Set of Parallel 4AWG Cables  per battery

Note: Assembly rack is required.

Certifications

CE / IEC62619 / UL1973 / UN38.3 / UL9540 Pending

Modular

Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.

Warranty

10 year warranty included.

Inverter Protocol Choosing

Use DIP address to set the RS485 baud rate and inverter protocol choosing

RUiXU RX-LFP48100-H Server Rack Battery Specifications

  • Nominal voltage: 51.2V
  • Nominal capacity at 0.2C: 100Ah
  • Nominal energy: 5.12kWh
  • Usable energy: 4.92kWh
  • Operating voltage range:  44.8V-56.0V
  • Charge voltage: 56V
  • Float voltage: 54.6V
  • Recommended charge current: 50A
  • Max. charge current: 70A
  • Recommended discharge current: 50A
  • Max. discharge current: 100A
  • Communication: RS485/CAN
  • Peak discharge current: 101-119A@5mins | 120-149A@15S
  • IP rating: IP20
  • Cycle life: >6000 cycles @90%DOD
  • Net weight: ~47kg (103.6lb)

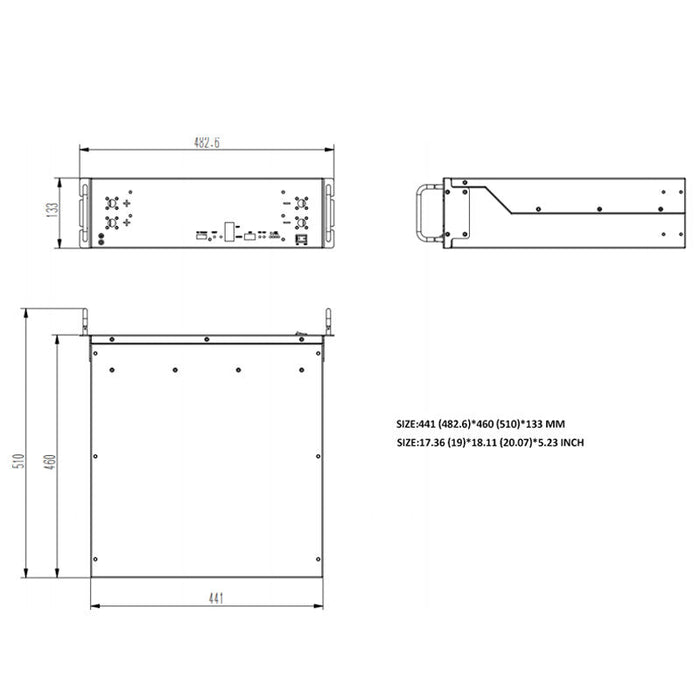

  • Dimension (W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch
  • Cell type: Lithium-iron phosphate (LiFePO4)
  • Design life: 15 years
  • Operation temperature: -10-50 C (14-122°F)
  • Storage temperature: -10-45°C (14-113°F)
  • Relative humidity: 5%-90%, No condensation
  • Install altitude: <4000m
  • Install location: Indoor
  • Installation: Wall mounted/Floor mounted/ Stack/ Rack mounted
