RUiXU RX-LFP48100 Stackable Bracket Rack Battery Kits

Discover flexibility and ease with the RUiXU Battery Optional Installation Method - Bracket Rack from Direct Solar Power Sovereign. This innovative solution offers stackable and flexible installation options for your RUiXU batteries, maximizing space utilization and customization. With the Bracket Rack, you can easily configure your battery setup to suit your needs, whether you prefer vertical or horizontal arrangements. Simplify installation and optimize your energy storage system with the RUiXU Battery Optional Installation Method - Bracket Rack from Direct Solar Power.

RUiXU Server Rack Battery Bracket Racks Installation Method

  1. Flexibility & Stackable
  2. 10kWH-45kWH, Max 9 Stacks
  3. A rack can be added as needed it
  4. RUiXU Busbar included

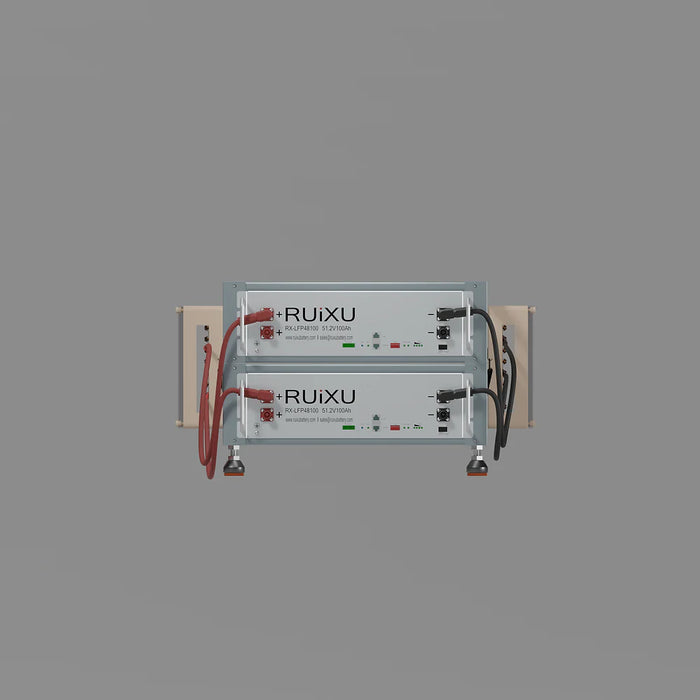

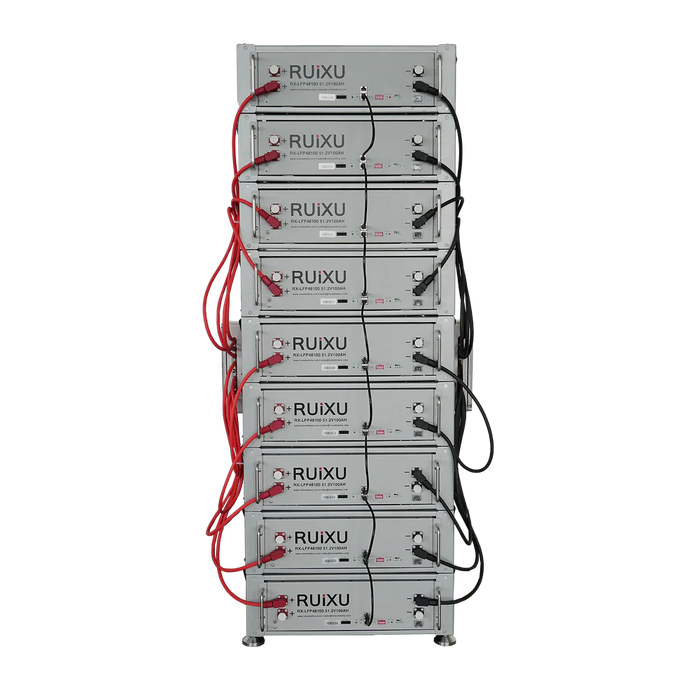

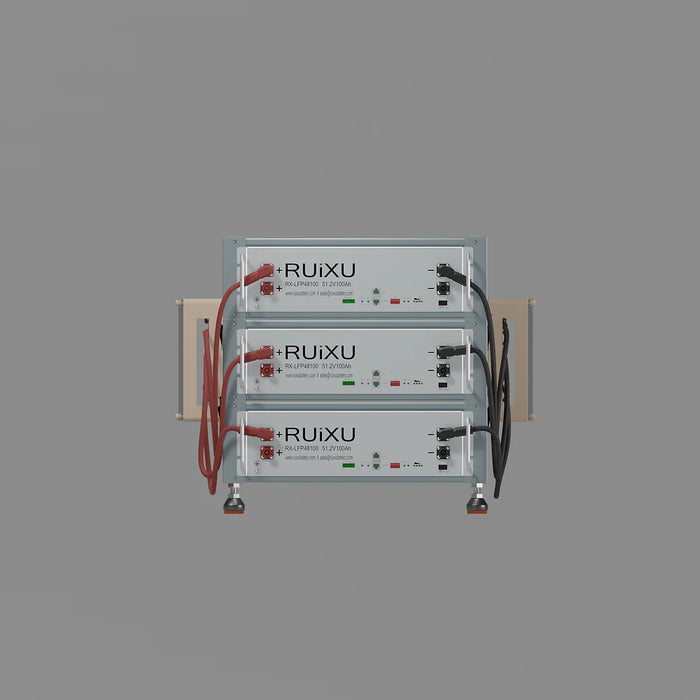

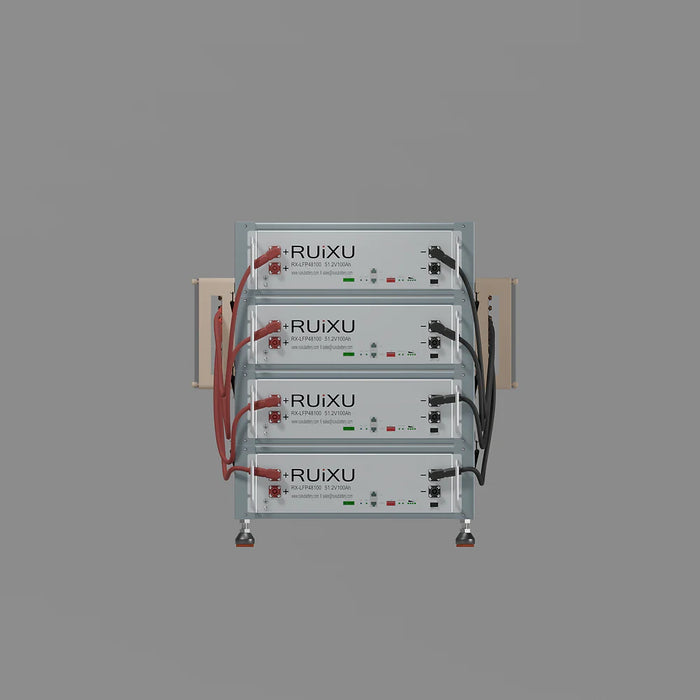

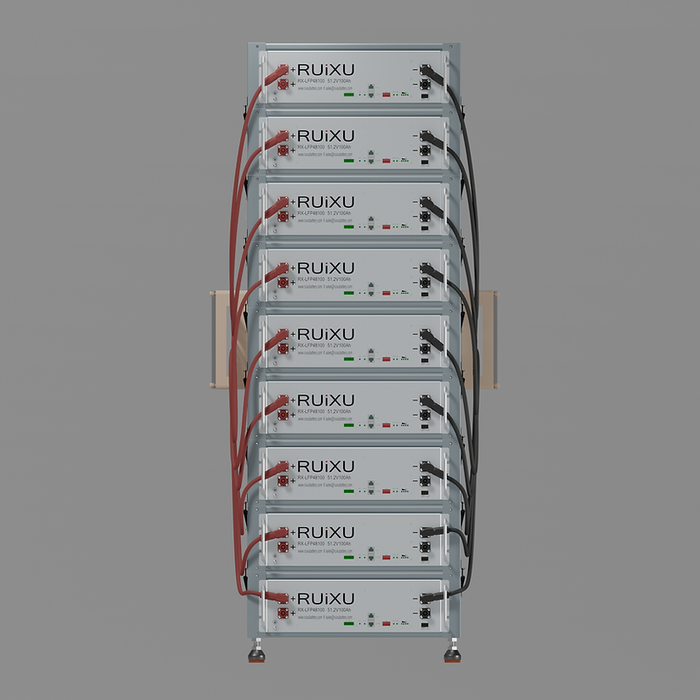

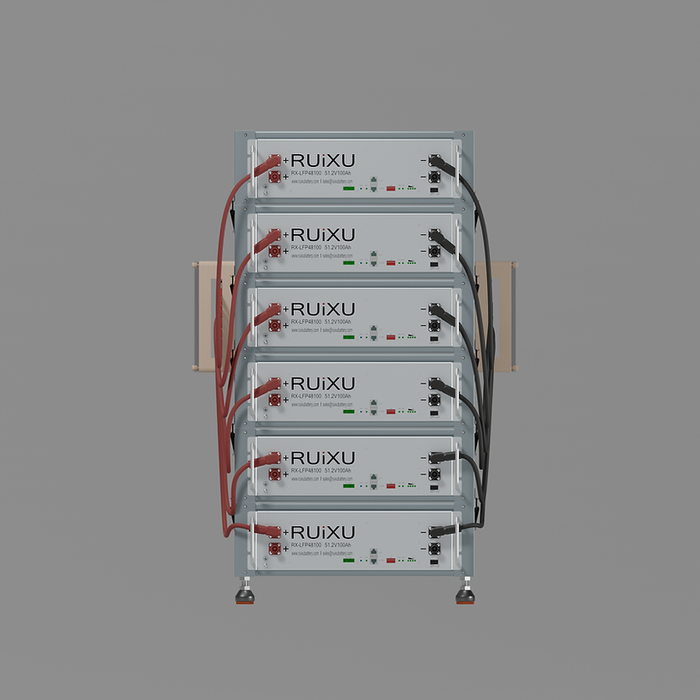

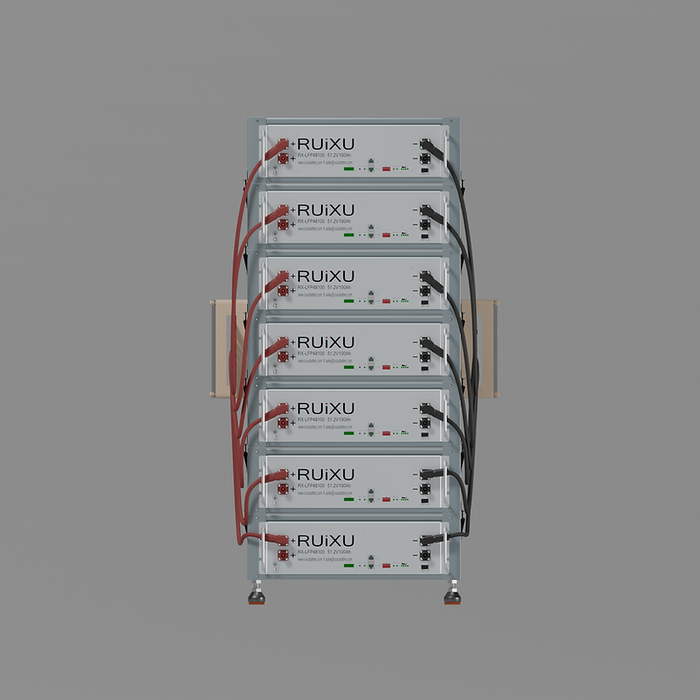

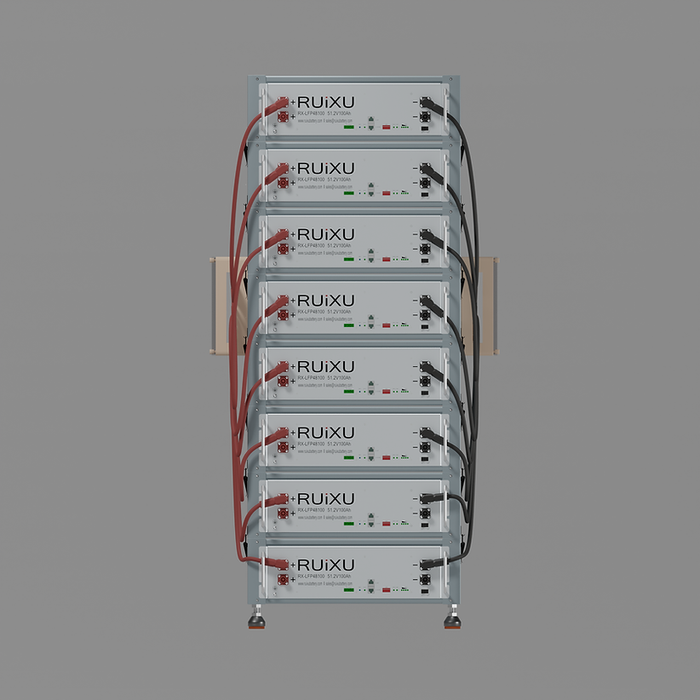

RUiXU bracket rack is a specially designed accessory that allows you to stack up to nine Ruixu RX-LFP48100 lithium batteries vertically in a compact and stable configuration. The RUiXU bracket rack is the perfect solution for homeowners and businesses who want to enjoy the benefits of a reliable, scalable, and cost-effective energy storage system.

What's Included per 5 kWH of RUiXU Server Rack Battery Kit

  • (1) RUiXU 48V Server Rack battery (RX-LFP48100)
  • (1) Bracket Racks
  • (1) Busbar
  • (1) RS485 Communication Cable
  • (1) Ground Cable
  • (1) Set of Parallel 4AWG Cables  per battery
  • Lifetime customer support (text, phone, email or live chat)

Certifications

CE / IEC62619 / UL1973 / UN38.3 / UL9540 Pending

Modular

Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.

Warranty

10 year warranty included.

Inverter Protocol Choosing

Use DIP address to set the RS485 baud rate and inverter protocol choosing

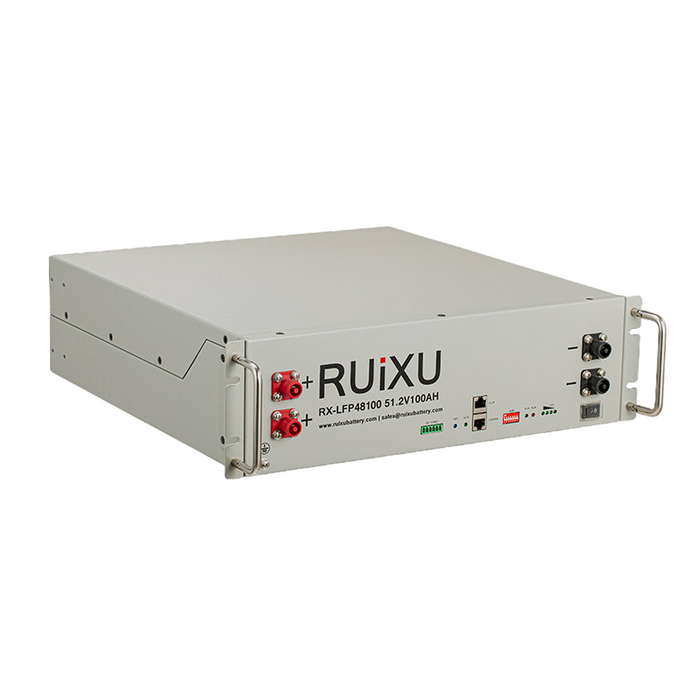

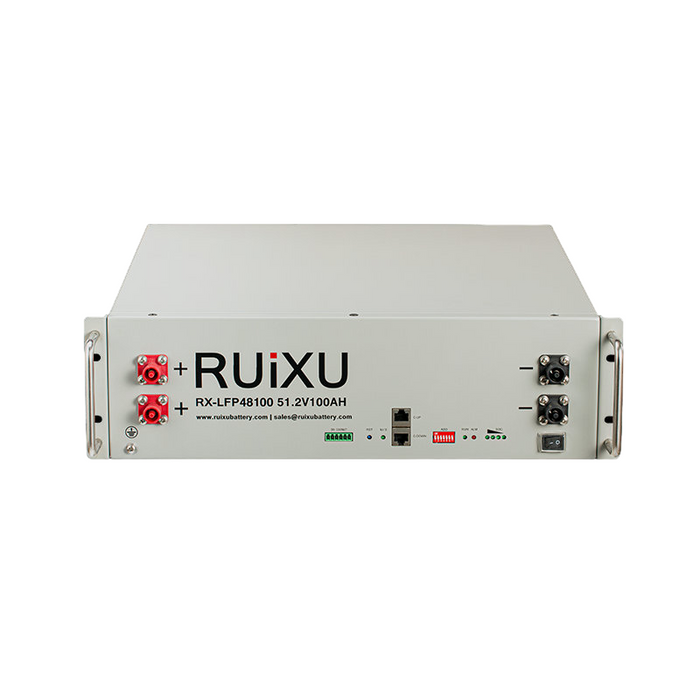

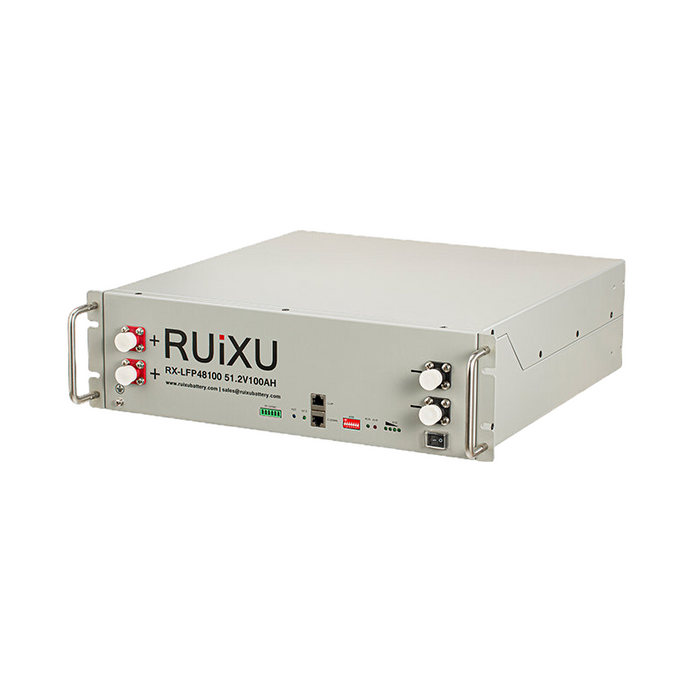

RUiXU RX-LFP48100 Server Rack Battery Specifications (per 1x unit)

  • Nominal voltage: 51.2V
  • Nominal capacity: 100Ah
  • Nominal energy: 5.12kWh
  • Usable energy: 4.92kWh
  • Operating voltage range:  44.8V-56.0V
  • Charge voltage: 56V
  • Float voltage: 54.6V
  • Recommended charge current: 50A
  • Max. charge current: 70A
  • Recommended discharge current: 50A
  • Max. discharge current: 100A
  • Communication: RS485/CAN
  • Peak discharge current: 101-119A@5mins | 120-149A@15S
  • IP rating: IP20
  • Cycle life: >6000 cycles @90%DOD
  • Net weight: ~47kg (103.6lb)
  • Dimension(W*H*D): 482*133.5*460mm (18.9 5.2*18.1 inch)
  • Cell type: Lithium-iron phosphate (LiFePO4)
  • Design life: 15 years
  • Operation temperature: -10-50 C (14-122°F)
  • Storage temperature: -10-45°C (14-113°F)
  • Relative humidity: 5%-90%, No condensation
  • Install altitude: <4000m
  • Install location: Indoor
  • Installation: Wall mounted/Floor mounted/ Stack/ Rack mounted
