SKU EG4LIFPOW4-24

EG4 LifePower4 V2 Lithium Battery | 24V 200AH | Server Rack Battery

Name: EG4 LifePower4 V2 Lithium Battery | 24V 200AH | Server Rack Battery
Brand: American Luxury Goods
SKU: EG4LIFPOW4-24
Price: 1199.0 USD
Availability: InStock

$1,199.00 - $1,199.00

$1,199.00

$1,199.00 - $1,199.00

$1,199.00

🚚

Only a few products left in stock

Quantity

Get a Custom Solar System Design

📞 Call Us

💬 Live Chat

SPRING SALE – LOWEST PRICES GUARANTEED

Spring is here, and so are unbeatable deals. Don’t wait—shop now and secure the lowest prices before the sale ends!

Descriptions

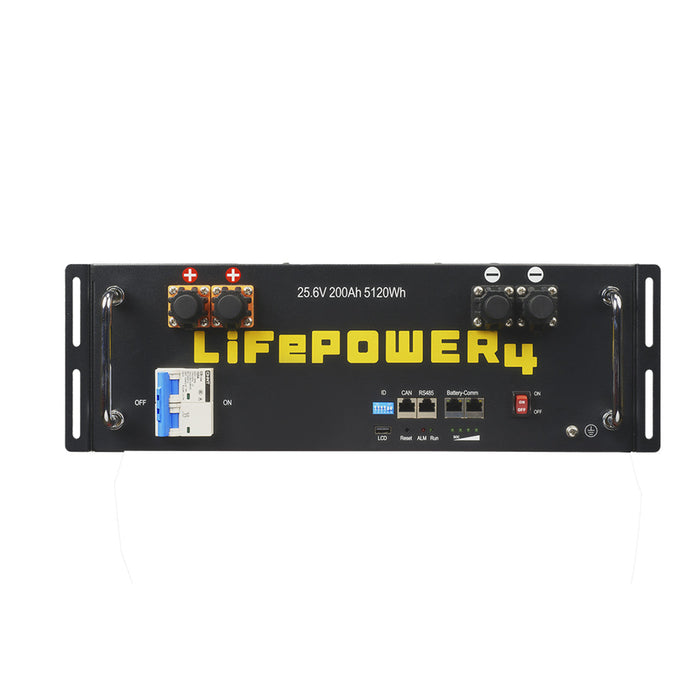

EG4 LiFePOWER4 24V V2 Battery

The LifePOWER4 24V V2 battery is an energy storage solution designed to offer superior performance, safety, and versatility. Building on the strengths of its predecessor, the V2 model includes several key upgrades to enhance its efficiency and reliability.

Key Features

Robust Architecture: Retains the high performance and durability of its predecessor.
Quality Cells: Composed of 16 UL-recognized prismatic 3.2V cells, providing over 6,000 cycles at 80% Depth of Discharge (DoD).
High Capacity: Nominal voltage of 25.6V and capacity of 200Ah, providing 5.12kWh of energy.
Powerful BMS: Equipped with an upgraded 200A Battery Management System (BMS), delivering up to 5,120W of continuous power and 7,680W for up to 5 seconds.
User-Friendly: Features a BMS on/off switch for safe monitoring without voltage at the terminals.
Extended Warranty: Backed by a new 10-year limited warranty for long-term peace of mind.

Advanced Features

Scalable Storage: Supports closed-loop communication with up to 64 batteries in parallel, achieving a maximum storage capacity of 327.7kWh.
Enhanced Connectivity: Features two positive and two negative terminals that accept 2 AWG battery to busbar power cables (included).
Efficient Communication: Includes a CAN bus port for closed-loop communication with Victron inverters and an RS485 port for firmware updates.
Safety First: Dual on-board fire arrestors provide added safety during operation.

Technical Specifications

Voltage: 25.6V
Capacity: 200Ah
Energy Capacity: 5.12kWh
Charging Current (Max. Continuous): 100A
Discharging Current (Max. Continuous): 200A
Charging Over Current Protection: >100A for 20s, >220A for 10s
Discharge Over Current Protection: >100A for 10s, >220A for 30s
Short Circuit Protection: >250A for <0.1s
Cell Over-Voltage Protection: 3.65V
Cell Under-Voltage Protection: 2.5V
Total Over-Voltage Protection: 29.2V
Total Under-Voltage Protection: 20.0V
Dimensions: 6.1 x 19 x 17.4 in
Warranty: 10 Years
Communications: RS485/CAN
Design Life: 15 years at 80% DoD

Documents & Downloads

Specifications Sheet: Click here to view
Quick Start Guide: Click here to view
Connections & Paralleling Guide: Click here to view
Device Monitoring & Setup Guide: Click here to view
Troubleshooting & Maintenance Guide: Click here to view

EG4 25.6V 200Ah LifePower4 V2

The 25.6V 200Ah EG4 LifePower4 V2 battery is an updated model with many quality-of-life improvements compared to the original 25.6V 200Ah EG4 LifePower4 V1.

Key Upgrades in V2

Upgraded double positive/negative terminals that can accept 2-AWG compression lugs.
Added an RJ45 CAN communication port for faster communication to an inverter.
Upgraded dipswitch now supports up to 64 other batteries in closed-loop communication.

Order your EG4 LifePower4 V2 Lithium Server Rack Battery Today!
